技术因素Parameters：

机型 Model	800	1000	1200
自粘卷材高度MAX.Parent Web Width	750mm	950mm	1150mm
放卷的直径Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径不低于Max.Rewinding Diameter	Φ600mm	Φ600mm	Φ600mm
速率 Max.Machine Speed	0-200m/min	0-200m/min	0-200m/min
总功率 Total Power	5.5KW	5.5KW	7.5KW
分量 Machine Weight	2200kg	2400kg	2600kg
形状尺寸 Overall Dimensions	2200×2200×1300	2200×2400×1300	2200×2600×1300
分切宽度 Min.Slitting Width	圆刀Round Blade :3mm	直刀Razor Blade :3mm

益处： 外表通常看上去卷取复卷分割机合吃于镀铝、打印纸、隔绝信息、烫金字膜、氟塑料透明膜（BOPP、PET、PE、PVC、PP、PS）等窄幅复卷分条

独特的：1、此机进行卷取及内心干仗并收卷体例2、配备光電主动的纠编裝配、拉伸应变磁粉减速器器、聚散器裝配3、配带自觉计米、自觉停用装配图4、服务器主机交流变频变频调速 5、放料体例：液压系统放料、液压泵放料、无轴锥顶放料体例要选购

Uses:

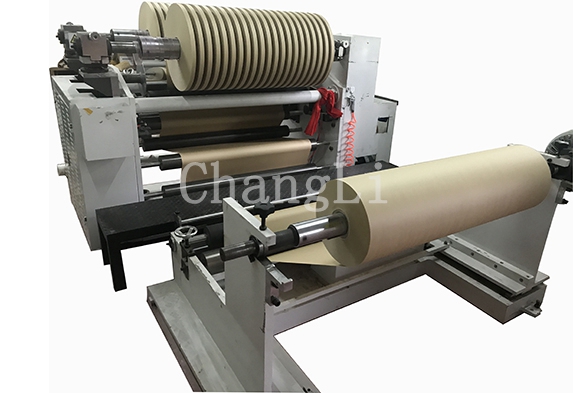

🧔Surface coiling and rewinding slitting machine is suitable for narrow-width rewinding slitting such as aluminum foil, paper, insulating material, bronzing film, plastic film (BOPP, PET, PE, PVC, PP, PS).

Features:

🅷1. The machine adopts winding and surface contact and winding method.

ꦚ2, equipped with photoelectric automatic correction device, tension magnetic powder brake, clutch device

💦3, equipped with automatic metering, automatic shutdown device

4, the host frequency control

✅5, feeding method: hydraulic feeding, cylinder feeding, no shaft cone top feeding method can be purchased
