首选手艺人产品参数Main Technical Parameters：

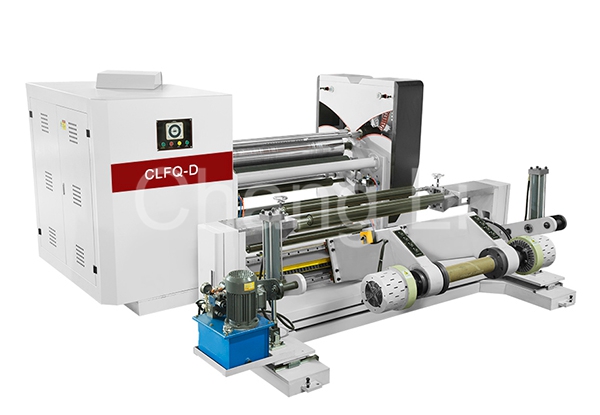

舱位 Model	CLFQ-D1150	CLFQ-D1350	CLFQ-D2650
zui大资料总宽MAX. Width of raw material	1120mm	1320mm	2620mm
zui大放卷内径Max.parent Web Diameter	Φ1500mm	Φ1500mm	Φ1500mm
zui大收卷直径约Max.Rewinding Diameter	Φ680mm	Φ680mm	Φ680mm
zui高广州POS机传输速度 Max.Machine Speed	10-350m/min	10-350m/min	10-350m/min
文件钢板厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
总工率 Total Power	14KW	16KW	19KW
信噪比 Machine Weight	3800kg	4300kg	4800kg
样子大小 Overall Dimensions	3500×2500×1450mm	3500×2700×1450mm	3500×3900×1450mm
zui小模切：宽度 Min.Slitting Width	圆刀Round Blade :3mm	直刀Razor Blade :3mm

可依据产品ajax请求 专门制造武器装备。Can be made according to the product requires special equipment.

合用规模

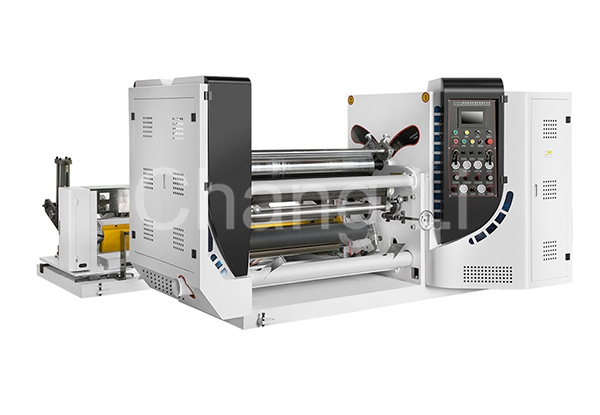

外表卷取复卷分切机合用于卷筒纸、塑胶片、铝箔、PVC、塑料薄膜、无纺布、熔喷布、绝缘资料等包装资料的分条复卷是对资料停止藐小规格分切的抱负装备。

机能及特色
1.放卷主动超声波纠偏、接纳无轴液压高低料，摆布间距调理均由液压实现，磁粉主动张力节制。

2.收卷由两部失量机械设备安装驱动与台式主机联调合理中间商卷取与样貌作战并且用，双轴拼接收卷，从未咬口。

3.主机传动由变频器节制，变频机电驱动，加加速不变疾速。
4..并设有预置主动计米，计较卷径，报警停机等功效。
5.接纳圆刀直刀纵切，分切盘面整洁，废边主动解除。

6.产品由PLC接触屏人与机器对话框活跃拉伸应变控制。 Scope of applicationThe surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, Non-woven fabric, meltblown fabric ,plastic film and insulating material. It is an ideal equipment for fine-cutting materials. Performance and characteristics1. The unwinding is automatically rectified by ultrasonic wave, and the shaftless hydraulic loading and unloading is adopted. The adjustment of the left and right spacing is completed by hydraulic pressure, and the magnetic powder is automatically controlled by tension.2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
