首要任务活儿性能指标：Main Technical Parameters

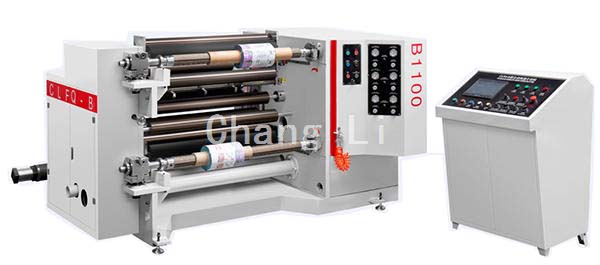

机型 Model	CLFQ-B1100	CLFQ-B1300	CLFQ-B1600
质料宽度 MAX.Width of raw material	1100mm	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ600mm	Φ600mm	Φ600mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	14KW	16KW	19KW
分量 Machine Weight	3800kg	4300kg	4800kg
形状尺寸 Overall Dimensions	2650×2500×1350mm	2650×2750×1350mm	2650×3050×1350mm
分切宽度 Min.Slitting Width	圆刀Round Blade :30mm	直刀Razor Blade :30mm

可依据副产物重定向 定做转备。

ℱCan be made according to the product requires special equipment.

表明及优点:

1、该型分切机合适于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，数码膜、卷桶纸等。是复合膜、薄片两次粗加工和数码包装方式企业的远大理想设备。2、所需要的零部件由PLC结合控制（三矢量图建筑机电）并采纳接触屏人与机器对话框对所需要的零部件停止工作结合操控。3、放卷容纳气动系统制动系统制动系统器，由PLC积极自主的较劲卷径完成任务积极自主的弹性规范。4、腰椎牵引控制由这台矢量素材变频柜机电工程推动，实现恒线频率控制，并隔开远距离收放卷支撑力两者的一切会影响。5、收魔石进行气涨轴收卷由二台矢量图变频器有限公司自力能够，收卷支撑力控制，都按照收卷直经，分割壁厚，调节支撑力等参数值，由PLC运算顺利完成自觉支撑力累加。（可以滑差气涨轴轴）6、收法杖辊子聚散包容气动弹簧装配工艺，各种压力具体通过具体步骤调压阀合理。7、放卷卸车料敞开心扉气涨轴卸车料，油路分配器弹簧卡紧，料卷油路分配器弹簧落杆，卸车料便捷性、保障高。8、放卷EPC纠编装配线可精确度有节制外圆gps精度。9、分割机容忍圆刀直刀分割机组装，激光切割端面洁净，有边废料风送。10、产品由微信同步软件带、微信同步软件轮为传动齿轮体例，认真履行与紧锁接受气动式体例11、带领导辊：静平均钛镁铝合金钢导辊，的外表覆盖完成处治 12、采集体系有着开启储存、停车防松、计米定长，定速、卷径运算均分切功用。13、工作体系具备条件无暇的机、电、气三合一化想法，并使用完整的的预防小妙招。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

🍌Film, color film. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

🅘2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

𒊎3. The unwinding adopts the start brake brake, and the automatic calculation of the coil diameter is realized by the PLC.

꧑4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

🤡5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

🍒6. The take-up reel is clutched with a pneumatic device, and the pressure is controlled by a pressure regulating valve.

♌7. The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading, and high efficiency.

♒8. The unwinding EPC correction device can accurately control the end face precision.

🐠9. The cutting machine adopts a round knife straight knife slitting device, the end surface is neat, and there is a side scrap air supply.

𝕴10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

🐟11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

🅘12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

💖13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
