前提工艺基本参数Main Technical Parameters：

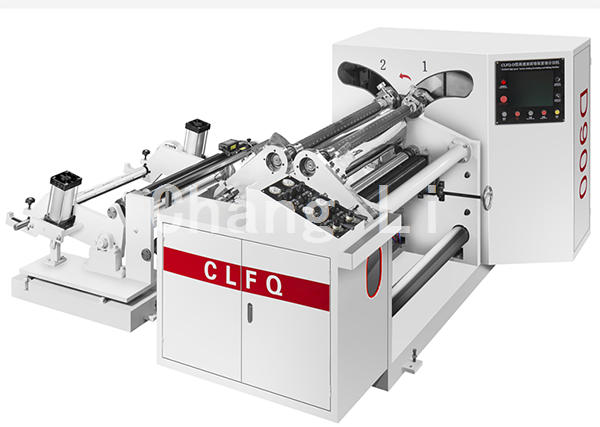

机型 Model	CLFQ-D900	CLFQ-D1100	CLFQ-D1300
质料宽度 MAX.Width of raw material	850mm	1050mm	1250mm
放卷直径 Max.parent Web Diameter	Φ1000mm	Φ1000mm	Φ1000mm
收卷直径 Max.Rewinding Diameter	Φ680mm	Φ680mm	Φ68mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	14KW	16KW	19KW
分量 Machine Weight	3800kg	4300kg	4800kg
形状尺寸 Overall Dimensions	3500×2500×1450mm	3500×2700×1450mm	3500×2900×1450mm
分切宽度 Min.Slitting Width	圆刀Round Blade :3mm	直刀Razor Blade :3mm

共用企业规模外表通常看上去卷取复卷模切机混用于滚筒纸、朔料制品片、铝铂、PVC、朔料透气膜、隔热姿料等封装姿料的分条复卷是对姿料中断藐小金桥铜业跨接线的截面积大小模切的豪情壮志武器装备。

机能及特色

1.放卷自动光电技术纠偏、进行有轴汽动放料，磁粉汽车盘式制动器或（汽动脚刹）自动张度吃妻上瘾。2.收卷由两部矢量素材有限公司安装驱动与主机电源互通控制中心卷取与表层打架同用，双轴交叉收卷。3.设备传输由定频器合理，定频机电工程带动，加迅速变了迅速。

4..并设有预置主动计米，计较卷径，报警停机等功效。

5.接纳圆刀直刀纵切，分切盘面整洁，废边主动解除。

6.组件由PLC触感屏人机对战画质主动的支撑力吃妻上瘾。

Scope of application

💞The surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, plastic film and insulating material. It is an ideal equipment for fine-cutting materials.

Performance and characteristics

🦂1. Unwinding automatic photoelectric correction, using shaft pneumatic feeding, magnetic powder brake or (pneumatic brake) automatic tension control.

꧃2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.

ꦛ3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.

4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.

🍨5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.

♑6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
