至关重要学手艺参数值：Main Technical Parameters

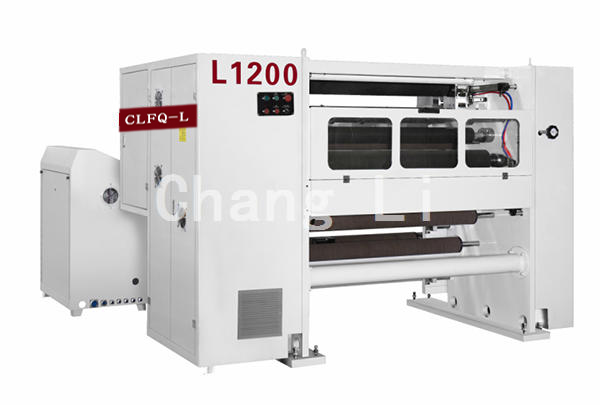

机型 Model	CLFQ-L1200
质料宽度 MAX.Width of raw material	1150mm
放卷直径 Max.parent Web Diameter	Φ700mm
收卷直径 Max.Rewinding Diameter	Φ500mm
机器速率 Max.Machine Speed	400m/min
资料厚度 Edge adjusting accuracy	0.012-0.2mm
纠偏精度 Total Power	±0.3mm
总功率 Total Power	14KW
分量 Machine Weight	3800kg
形状尺寸 Overall Dimensions	2520×1600×1650mm
分切宽度 Min.Slitting Width	30mm

声明范文及苏州特色:1、该型分割机适合的于分割PE、PP、PET,PVC等塑料管薄膜和珍珠棉，和好膜， 膜，印刷膜。是贴膜、薄片多次加工工艺和印刷外包装机构的报负门焊机。2、元件由PLC非空子集控制（三矢量图机械）并辨别是非触摸显示屏屏电脑用户界面对元件停下非空子集操作。3、放卷采纳通电制动踏板制动踏板器，由PLC积极活跃算计卷径做好积极活跃涨力规范。4、伸位放肆由一辆矢量图变頻电气驱动器，达成恒线传送速度放肆，并有xiao地阻隔长度收放卷弹性当中的我们之间反应。5、收法杖认同气涨轴收卷由二台矢量素材定频有限公司自力win7驱动，收卷表面张度放肆，是以收卷长度，分割板厚，场景人物风格的设定在表面张度等性能指标，由PLC运算搞定主动性表面张度增加。（可选择滑差气涨轴）6、收秘药辊子聚散辨别是非气动式装配线，负压不病通过的过程调压阀合理，（辊子辨别是非平推式）。7、放卷运输料辨别是非气涨轴运输料，油路分配器系统伸缩，料卷油路分配器系统升降，运输料方便快捷、效力待定高。8、放卷EPC纠编装配图配搭CCD影象感测器器，可高表面粗糙度有节制横截表面粗糙度。9、分割机机接纳孩子直刀分割机机组装，铣面干净整洁，有边垃圾风送。（纸张类型需订购圆刀分割机机组装）10、零件图由同时进行带、同时进行轮为传送体例，实行与拉紧采纳气动弹簧体例11、腰椎牵引导辊：静均等化铝镁合金钢导辊，长相软化剂防范 12、体系中具有起动响应、停车防松、计米定长，定速、卷径运算均分切药理作用。13、体系中符合高品质的机、电、气立体式化指导思想，并采纳详尽的保护技巧。

Description and characteristics:

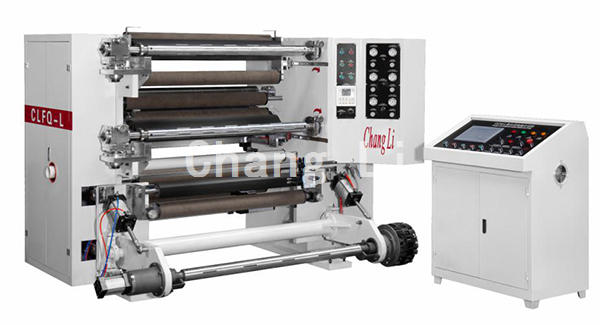

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

൩Film, color film. It is the ideal model for film and sheet secondary processing and color printing packaging enterprises.

ಞ2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

♛3. The unwinding adopts the start brake brake, and the automatic calculation of the coil diameter is realized by the PLC.

♍4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

𒆙5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）6. The take-up reel is clutched with a pneumatic device, and the pressure is controlled by a pressure regulating valve. (The pressure roller is of flat push type).

🦩7. The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading, and high efficiency.

💜8.The unwinding EPC correction device is equipped with a CCD image sensor to accurately control the end face accuracy.

ไ9. The slitting adopts the straight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to purchase round knife slitting device)

🌼10. The whole machine is driven by synchronous belt and synchronous wheel, and pneumatically operated by locking and locking.

𓆏11. Traction guide roller: static balance aluminum alloy guide roller, surface hardening treatment

🦩12. The system has the functions of starting buffering, parking anti-loose, metering length, constant speed, and coil diameter calculation.

♕13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
