首要手艺参数：Main Technical Parameters

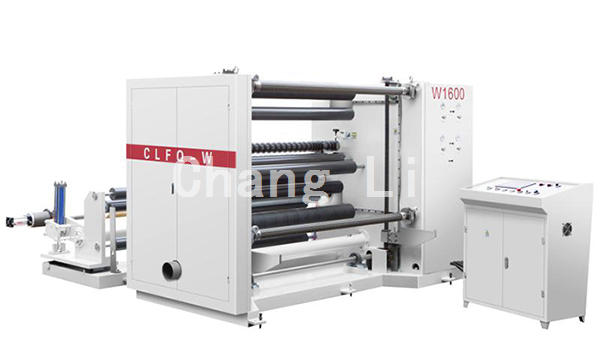

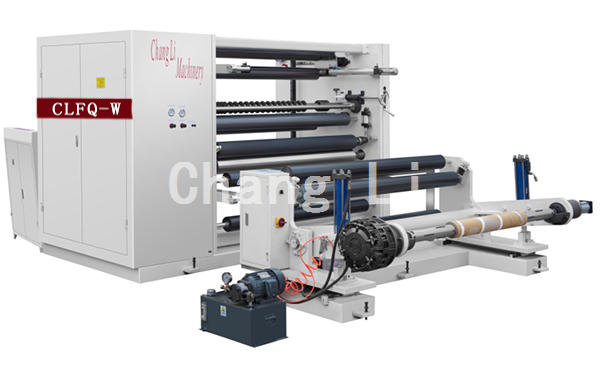

机型 Model	CLFQ-W1300	CLFQ-W1600
质料宽度 MAX.Width of raw material	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ1200mm	Φ1200mm
收卷直径 Max.Rewinding Diameter	Φ1000mm	Φ1000mm
机器速率 Max.Machine Speed	10-300m/min	10-300m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	19KW	23KW
分量 Machine Weight	4300kg	4800kg
形状尺寸 Overall Dimensions	2700×2900×1800mm	3000×2900×1800mm
分切宽度 Min.Slitting Width	50mm

可采用产品明确提出 定制游戏装备。

♑Can be made according to the product requires special equipment.

生成物声明混用投资额该设备同用于各样小型防水防水卷材的分割机，如30g/m2-300g/m2头层牛皮纸袋、白纸卡、淋膜纸、镀铝、PVC材料、锡纸等防水防水卷材的分割机、复卷等。包能及独具特色1. 该选果机去接纳孩子异步交流伺服电电气气自动化(矢量素材电气自动化)合理、主动地锥度支撑力，间卷取体例。服务器主机去接纳孩子变频器调压，坚持学习加快速度中都衡启用。2. 及时计米、报案药用价值。收卷采纳A、B气胀轴布置，卸装操作便利店加盟。3. 放卷容忍光电技术会去主动纠偏批改作业装修标准，使不理论数据资料能通常情况分切机。4. 圆刀纵切废边主动性排放标准配备。5. 液压式积极主动上料机，配气胀轴。6.导轨式主动地开料自动装配。

product manual

Scope of application

🌜This machine is suitable for the slitting of various super-large coils, such as slitting and rewinding of 30g/m2-300g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.

Performance and characteristics

🍃1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension and center winding method. The main engine adopts frequency conversion speed regulation to maintain balanced operation during acceleration.

♏2. Automatic metering and alarm function. The winding adopts the A and B air expansion shaft structure, and the unloading operation is convenient.

♛3. Unwinding adopts photoelectric automatic correction correction system to make irregular materials cut normally.

🐬4. The circular knife cuts the waste side automatic discharge device.

🐎5. Hydraulic automatic feeding, with air expansion shaft.

6. Rail type automatic cutting device.
