首选工艺参数设置：Main Technical Parameters

机型 Model	800	1000	1200
卷材宽度 MAX.Parent Web Width	750mm	950mm	1150mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ520mm	Φ520mm	Φ520mm
速率 Max.Machine Speed	0-180m/min	0-180m/min	0-180m/min
总功率 Total Power	4KW	5.5KW	5.5KW
分量 Machine Weight	2000kg	2300kg	2600kg
形状尺寸 Overall Dimensions	2800×2400×1200	2800×2600×1200	2800×2800×1200
纸芯规格 Paper core specification	圆刀Round Blade :3mm	直刀Razor Blade :3mm

可如果根据货物恳求 定做武器装备。

ℱCan be made according to the product requires special equipment.

用途： 外层卷取复卷分割机好用于铝泊、用纸、绝缘电阻资源、烫金字膜、材料聚酯薄膜（BOPP、PET、PE、PVC）等窄幅分条复卷上海特色：1、放卷还配有微电子自动纠编组装、磁粉减速器器自动力值2、搭配自动计米、自动断电搭配3、服务器主机变频器调速器 4、收卷二只磁粉聚散器与电脑主机对接有节制里边卷取与看上去实战互用，双轴运用收卷。5、圆刀/直刀纵切，自觉吹废边搭配。

Uses:

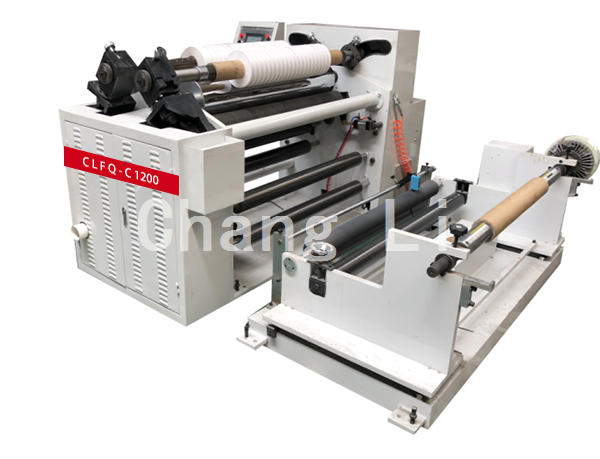

ꦦSurface winding slitting and rewinding machine is suitable for narrow strip rewinding such as aluminum foil, paper, insulating material, bronzing film, plastic film (BOPP, PET, PE, PVC).

Features:

⛄1. Unwinding is equipped with photoelectric automatic correction device and magnetic powder brake automatic tension

🦩2, equipped with automatic metering, automatic shutdown device

3, the host frequency control

🐈4. The two magnetic powder clutches and the main engine linkage control center are wound up and used in contact with the surface, and the two-axis cross winding is performed, never biting.

♕5. Round knife / straight knife slitting, automatic blowing waste side device.
